HALDER EH 22340. EH 22350球锁销自锁快锁插销

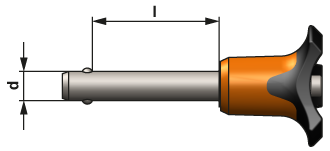

产品构造

Reference number	Material	d1 (mm)	l1 (mm)	d2 (mm)	d3 (mm)	l2 (mm)	l3 (mm)	l4 (mm)	l5 (mm)	l6 (mm)	l7 (mm)	Location Hole H11 (mm)	Shearing resistance, double (kN min.)	Weight (g)
EH 22340.0112	Stainless steel 1.4305	5	10	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	14	20
EH 22340.0113	Stainless steel 1.4305	5	15	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	14	21
EH 22340.0114	Stainless steel 1.4305	5	20	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	14	21
EH 22340.0115	Stainless steel 1.4305	5	25	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	14	22
EH 22340.0116	Stainless steel 1.4305	5	30	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	14	23
EH 22340.0122	Stainless steel 1.4305	6	10	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	21
EH 22340.0123	Stainless steel 1.4305	6	15	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	22
EH 22340.0124	Stainless steel 1.4305	6	20	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	21
EH 22340.0125	Stainless steel 1.4305	6	25	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	24
EH 22340.0126	Stainless steel 1.4305	6	30	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	25
EH 22340.0127	Stainless steel 1.4305	6	35	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	26
EH 22340.0128	Stainless steel 1.4305	6	40	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	27
EH 22340.0129	Stainless steel 1.4305	6	45	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	27
EH 22340.0130	Stainless steel 1.4305	6	50	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	21	28
EH 22340.0134	Stainless steel 1.4305	8	20	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	36
EH 22340.0135	Stainless steel 1.4305	8	25	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	37
EH 22340.0136	Stainless steel 1.4305	8	30	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	38
EH 22340.0137	Stainless steel 1.4305	8	35	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	40
EH 22340.0138	Stainless steel 1.4305	8	40	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	42
EH 22340.0139	Stainless steel 1.4305	8	45	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	44
EH 22340.0140	Stainless steel 1.4305	8	50	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	38	45
EH 22340.0144	Stainless steel 1.4305	10	20	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	46
EH 22340.0145	Stainless steel 1.4305	10	25	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	49
EH 22340.0146	Stainless steel 1.4305	10	30	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	51
EH 22340.0147	Stainless steel 1.4305	10	35	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	54
EH 22340.0148	Stainless steel 1.4305	10	40	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	56
EH 22340.0149	Stainless steel 1.4305	10	45	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	59
EH 22340.0150	Stainless steel 1.4305	10	50	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	61
EH 22340.0152	Stainless steel 1.4305	10	60	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	60	67
EH 22340.0165	Stainless steel 1.4305	12	25	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	72
EH 22340.0166	Stainless steel 1.4305	12	30	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	75
EH 22340.0167	Stainless steel 1.4305	12	35	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	80
EH 22340.0168	Stainless steel 1.4305	12	40	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	83
EH 22340.0169	Stainless steel 1.4305	12	45	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	88
EH 22340.0170	Stainless steel 1.4305	12	50	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	91
EH 22340.0172	Stainless steel 1.4305	12	60	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	99
EH 22340.0174	Stainless steel 1.4305	12	70	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	106
EH 22340.0176	Stainless steel 1.4305	12	80	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	87	114
EH 22350.0112	Stainless steel 1.4542	5	10	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	24	20
EH 22350.0113	Stainless steel 1.4542	5	15	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	24	21
EH 22350.0114	Stainless steel 1.4542	5	20	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	24	21
EH 22350.0115	Stainless steel 1.4542	5	25	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	24	22
EH 22350.0116	Stainless steel 1.4542	5	30	5.5	11.8	6	31.6	21.9	43.8	12.6	8.5	5	24	23
EH 22350.0122	Stainless steel 1.4542	6	10	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	21
EH 22350.0123	Stainless steel 1.4542	6	15	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	22
EH 22350.0124	Stainless steel 1.4542	6	20	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	21
EH 22350.0125	Stainless steel 1.4542	6	25	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	24
EH 22350.0126	Stainless steel 1.4542	6	30	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	25
EH 22350.0127	Stainless steel 1.4542	6	35	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	26
EH 22350.0128	Stainless steel 1.4542	6	40	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	27
EH 22350.0129	Stainless steel 1.4542	6	45	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	27
EH 22350.0130	Stainless steel 1.4542	6	50	7	11.8	7	31.6	21.9	43.8	12.6	8.5	6	35	28
EH 22350.0134	Stainless steel 1.4542	8	20	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	36
EH 22350.0135	Stainless steel 1.4542	8	25	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	37
EH 22350.0136	Stainless steel 1.4542	8	30	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	38
EH 22350.0137	Stainless steel 1.4542	8	35	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	40
EH 22350.0138	Stainless steel 1.4542	8	40	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	42
EH 22350.0139	Stainless steel 1.4542	8	45	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	44
EH 22350.0140	Stainless steel 1.4542	8	50	9.5	14.7	8.2	35.8	24.4	49.7	15.8	9.9	8	63	45
EH 22350.0144	Stainless steel 1.4542	10	20	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	46
EH 22350.0145	Stainless steel 1.4542	10	25	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	49
EH 22350.0146	Stainless steel 1.4542	10	30	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	51
EH 22350.0147	Stainless steel 1.4542	10	35	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	54
EH 22350.0148	Stainless steel 1.4542	10	40	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	56
EH 22350.0149	Stainless steel 1.4542	10	45	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	59
EH 22350.0150	Stainless steel 1.4542	10	50	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	61
EH 22350.0152	Stainless steel 1.4542	10	60	12	14.7	9.6	35.8	24.4	49.7	15.8	9.9	10	100	67
EH 22350.0165	Stainless steel 1.4542	12	25	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	72
EH 22350.0166	Stainless steel 1.4542	12	30	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	75
EH 22350.0167	Stainless steel 1.4542	12	35	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	80
EH 22350.0168	Stainless steel 1.4542	12	40	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	83
EH 22350.0169	Stainless steel 1.4542	12	45	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	88
EH 22350.0170	Stainless steel 1.4542	12	50	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	91
EH 22350.0172	Stainless steel 1.4542	12	60	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	99
EH 22350.0174	Stainless steel 1.4542	12	70	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	106
EH 22350.0176	Stainless steel 1.4542	12	80	14.5	18.2	10.6	35.1	22.7	57.1	20.2	12.6	12	144	114

Reference number	Material	d1 (mm)	l1 (mm)	d2 (mm)	d3 (mm)	l2 (mm)	l3 (mm)	l4 (mm)	l5 (mm)	l6 (mm)	Location Hole H11 (mm)	Shearing resistance, double (kN min.)	Weight (g)
EH 22340.0012	Stainless steel 1.4305	5	10	5.5	11.8	6	31.6	24.1	45.2	12.7	5	14	20
EH 22340.0013	Stainless steel 1.4305	5	15	5.5	11.8	6	31.6	24.1	45.2	12.7	5	14	21
EH 22340.0014	Stainless steel 1.4305	5	20	5.5	11.8	6	31.6	24.1	45.2	12.7	5	14	21
EH 22340.0015	Stainless steel 1.4305	5	25	5.5	11.8	6	31.6	24.1	45.2	12.7	5	14	22
EH 22340.0016	Stainless steel 1.4305	5	30	5.5	11.8	6	31.6	24.1	45.2	12.7	5	14	23
EH 22340.0022	Stainless steel 1.4305	6	10	7	11.8	7	31.6	24.1	45.2	12.7	6	21	21
EH 22340.0023	Stainless steel 1.4305	6	15	7	11.8	7	31.6	24.1	45.2	12.7	6	21	22
EH 22340.0024	Stainless steel 1.4305	6	20	7	11.8	7	31.6	24.1	45.2	12.7	6	21	23
EH 22340.0025	Stainless steel 1.4305	6	25	7	11.8	7	31.6	24.1	45.2	12.7	6	21	24
EH 22340.0026	Stainless steel 1.4305	6	30	7	11.8	7	31.6	24.1	45.2	12.7	6	21	25
EH 22340.0027	Stainless steel 1.4305	6	35	7	11.8	7	31.6	24.1	45.2	12.7	6	21	26
EH 22340.0028	Stainless steel 1.4305	6	40	7	11.8	7	31.6	24.1	45.2	12.7	6	21	27
EH 22340.0029	Stainless steel 1.4305	6	45	7	11.8	7	31.6	24.1	45.2	12.7	6	21	27
EH 22340.0030	Stainless steel 1.4305	6	50	7	11.8	7	31.6	24.1	45.2	12.7	6	21	28
EH 22340.0034	Stainless steel 1.4305	8	20	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	36
EH 22340.0035	Stainless steel 1.4305	8	25	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	37
EH 22340.0036	Stainless steel 1.4305	8	30	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	38
EH 22340.0037	Stainless steel 1.4305	8	35	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	40
EH 22340.0038	Stainless steel 1.4305	8	40	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	42
EH 22340.0039	Stainless steel 1.4305	8	45	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	44
EH 22340.0040	Stainless steel 1.4305	8	50	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	38	45
EH 22340.0044	Stainless steel 1.4305	10	20	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	46
EH 22340.0045	Stainless steel 1.4305	10	25	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	49
EH 22340.0046	Stainless steel 1.4305	10	30	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	51
EH 22340.0047	Stainless steel 1.4305	10	35	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	54
EH 22340.0048	Stainless steel 1.4305	10	40	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	56
EH 22340.0049	Stainless steel 1.4305	10	45	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	59
EH 22340.0050	Stainless steel 1.4305	10	50	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	61
EH 22340.0052	Stainless steel 1.4305	10	60	12	14.7	9.6	35.8	26.9	51.5	15.8	10	60	67
EH 22340.0065	Stainless steel 1.4305	12	25	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	72
EH 22340.0066	Stainless steel 1.4305	12	30	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	75
EH 22340.0067	Stainless steel 1.4305	12	35	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	80
EH 22340.0068	Stainless steel 1.4305	12	40	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	83
EH 22340.0069	Stainless steel 1.4305	12	45	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	88
EH 22340.0070	Stainless steel 1.4305	12	50	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	91
EH 22340.0072	Stainless steel 1.4305	12	60	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	99
EH 22340.0074	Stainless steel 1.4305	12	70	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	106
EH 22340.0076	Stainless steel 1.4305	12	80	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	87	114
EH 22350.0012	Stainless steel 1.4542	5	10	5.5	11.8	6	31.6	24.1	45.2	12.7	5	24	20
EH 22350.0013	Stainless steel 1.4542	5	15	5.5	11.8	6	31.6	24.1	45.2	12.7	5	24	21
EH 22350.0014	Stainless steel 1.4542	5	20	5.5	11.8	6	31.6	24.1	45.2	12.7	5	24	21
EH 22350.0015	Stainless steel 1.4542	5	25	5.5	11.8	6	31.6	24.1	45.2	12.7	5	24	22
EH 22350.0016	Stainless steel 1.4542	5	30	5.5	11.8	6	31.6	24.1	45.2	12.7	5	24	23
EH 22350.0022	Stainless steel 1.4542	6	10	7	11.8	7	31.6	24.1	45.2	12.7	6	35	21
EH 22350.0023	Stainless steel 1.4542	6	15	7	11.8	7	31.6	24.1	45.2	12.7	6	35	22
EH 22350.0024	Stainless steel 1.4542	6	20	7	11.8	7	31.6	24.1	45.2	12.7	6	35	23
EH 22350.0025	Stainless steel 1.4542	6	25	7	11.8	7	31.6	24.1	45.2	12.7	6	35	24
EH 22350.0026	Stainless steel 1.4542	6	30	7	11.8	7	31.6	24.1	45.2	12.7	6	35	25
EH 22350.0027	Stainless steel 1.4542	6	35	7	11.8	7	31.6	24.1	45.2	12.7	6	35	26
EH 22350.0028	Stainless steel 1.4542	6	40	7	11.8	7	31.6	24.1	45.2	12.7	6	35	27
EH 22350.0029	Stainless steel 1.4542	6	45	7	11.8	7	31.6	24.1	45.2	12.7	6	35	27
EH 22350.0030	Stainless steel 1.4542	6	50	7	11.8	7	31.6	24.1	45.2	12.7	6	35	28
EH 22350.0034	Stainless steel 1.4542	8	20	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	36
EH 22350.0035	Stainless steel 1.4542	8	25	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	37
EH 22350.0036	Stainless steel 1.4542	8	30	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	38
EH 22350.0037	Stainless steel 1.4542	8	35	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	40
EH 22350.0038	Stainless steel 1.4542	8	40	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	42
EH 22350.0039	Stainless steel 1.4542	8	45	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	44
EH 22350.0040	Stainless steel 1.4542	8	50	9.5	14.7	8.2	35.8	26.9	51.5	15.8	8	63	45
EH 22350.0044	Stainless steel 1.4542	10	20	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	46
EH 22350.0045	Stainless steel 1.4542	10	25	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	49
EH 22350.0046	Stainless steel 1.4542	10	30	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	51
EH 22350.0047	Stainless steel 1.4542	10	35	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	54
EH 22350.0048	Stainless steel 1.4542	10	40	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	56
EH 22350.0049	Stainless steel 1.4542	10	45	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	59
EH 22350.0050	Stainless steel 1.4542	10	50	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	61
EH 22350.0052	Stainless steel 1.4542	10	60	12	14.7	9.6	35.8	26.9	51.5	15.8	10	100	67
EH 22350.0065	Stainless steel 1.4542	12	25	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	72
EH 22350.0066	Stainless steel 1.4542	12	30	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	75
EH 22350.0067	Stainless steel 1.4542	12	35	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	80
EH 22350.0068	Stainless steel 1.4542	12	40	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	83
EH 22350.0069	Stainless steel 1.4542	12	45	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	88
EH 22350.0070	Stainless steel 1.4542	12	50	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	91
EH 22350.0072	Stainless steel 1.4542	12	60	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	99
EH 22350.0074	Stainless steel 1.4542	12	70	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	106
EH 22350.0076	Stainless steel 1.4542	12	80	14.5	18.2	10.6	35.1	25.3	59.1	20.2	12	144	114
