Size	AC (mm)	AD (mm)	AD` (mm)	D (mm)	E (mm)	HB (mm)	HB` (mm)	HD (mm)	L (mm)	L (mm)	N (mm)	P (mm)	S (mm)	T (mm)	Type of brake	delta L (mm)

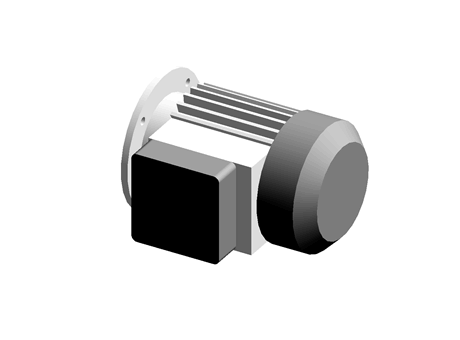

B5 (V1, V3)-56	110	90	106	9	20	40	47.5	–	188	100	80	120	7	3	EFB	35
B5 (V1, V3)-63	124	96	112	11	23	40	47.5	–	209.5	115	95	140	9.5	3	EFB	32.5
B5 (V1, V3)-71	139	101	117	14	30	40	47.5	–	237	130	110	160	9.5	3.5	EFB	40
B5 (V1, V3)-80	158	108	124	19	40	40	47.5	–	273	165	130	200	11.5	3.5	ZFB	54.5
B5 (V1, V3)-90S	177	122	140	24	50	51	57.5	–	299.5	165	130	200	11.5	3.5	EFB	40
B5 (V1, V3)-90L	177	122	140	24	50	51	57.5	–	324.5	165	130	200	11.5	3.5	ZFB	67.5
B5 (V1, V3)-100L	196	130	148	28	60	51	57.5	133	369	215	180	250	14	4	EFB	56.5
B5 (V1, V3)-112M	220	140	158	28	60	51	57.5	142	389	215	180	250	14	4	ZFB	77
B5 (V1, V3)-112Me	220	140	158	28	60	51	57.5	142	458	215	180	250	14	4	EFB	56.5
B5 (V1, V3)-132S	262	181	190	38	80	73	84	176	456	265	230	300	14	4	ZFB	77
B5 (V1, V3)-132M	262	181	190	38	80	73	84	176	494	265	230	300	14	4	EFB	56.5
B5 (V1, V3)-132Md	262	181	190	38	80	73	84	176	524	265	230	300	14	4	ZFB	96
B5 (V1, V3)-132L	262	181	190	38	80	73	84	176	564	265	230	300	14	4	ZFB	86.5
B5 (V1, V3)-160M	310	–	238	42	110	–	84	204	587	300	250	350	18	5	ZFB	86.5
B5 (V1, V3)-160L	310	–	238	42	110	–	84	204	631	300	250	350	18	5	ZFB	109

Size	AC (mm)	AD (mm)	AD` (mm)	D (mm)	E (mm)	HB (mm)	HB` (mm)	HD (mm)	L (mm)	M (mm)	N (mm)	P (mm)	S	T (mm)	Type of brake	delta L
B14 (V18, V19)-56	110	90	106	9	20	40	47.5	–	188	65	50	80	M5	2.5	EFB	35
B14 (V18, V19)-63	124	96	112	11	23	40	47.5	–	209.5	75	60	90	M5	2.5	EFB	32.5
B14 (V18, V19)-71	139	101	117	14	30	40	47.5	–	237	85	70	105	M6	2.5	EFB	40-54.5
B14 (V18, V19)-80	158	108	124	19	40	40	47.5	–	273	100	80	120	M6	3	ZFB	40-67.5
B14 (V18, V19)-90S	177	122	140	24	50	51	57.5	–	299.5	115	95	140	M8	3	EFB	56.5-77
B14 (V18, V19)-90L	177	122	140	24	50	51	57.5	–	324.5	115	95	140	M8	3	ZFB	56.5-77
B14 (V18, V19)-100L	196	130	148	28	60	51	57.5	133	369	130	110	160	M8	3.5	EFB	56.5-96
B14 (V18, V19)-112M	220	140	158	28	60	51	57.5	142	389	165	130	200	M10	3.5	ZFB	86.5
B14 (V18, V19)-112Me	220	140	158	28	60	51	57.5	142	458	165	130	200	M10	3.5	EFB	86.5
B14 (V18, V19)-132S	262	181	190	38	80	73	84	176	456	215	180	250	M12	4	ZFB	109
B14 (V18, V19)-132M	262	181	190	38	80	73	84	176	494	215	180	250	M12	4	EFB	109
B14 (V18, V19)-132Md	262	181	190	38	80	73	84	176	524	215	180	250	M12	4	ZFB	109
B14 (V18, V19)-132L	262	81	190	38	80	73	84	176	564	215	180	250	M12	4	ZFB	109

ABM Greiffenberger nduction Motors感应电机 步进电机B5 B14
